Model

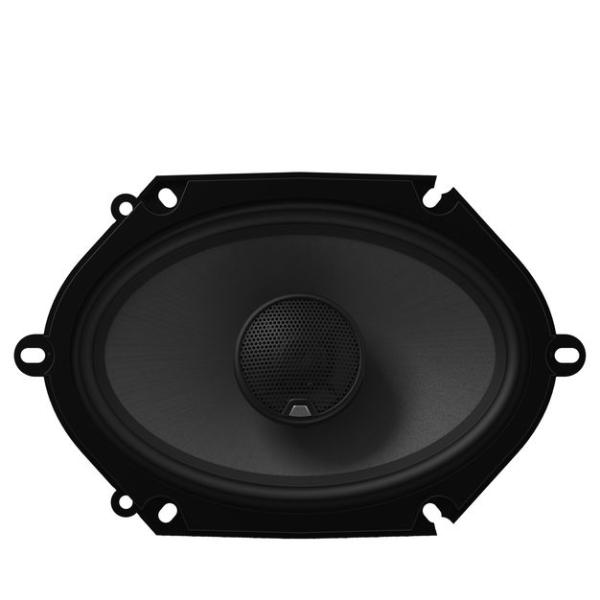

JBL GTO 8629
Rating
DIAM
68"
FS(Hz)
72
VAS(l)
10.5
QTS
0.88
PWR(W)
180
SPL(dB)
87.8
IMP(Ohm)
3x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
72
Vas(l)
10.5
Qts
0.88
Qms
7.41
Qes
0.999
Bl(Tm)
4.3
Mms(gr)
17
Cms(mm/N)
0.28
Rms(kg/s)
1.065
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
16230
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
68
Max Power(W.)
180
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
3
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
