Model

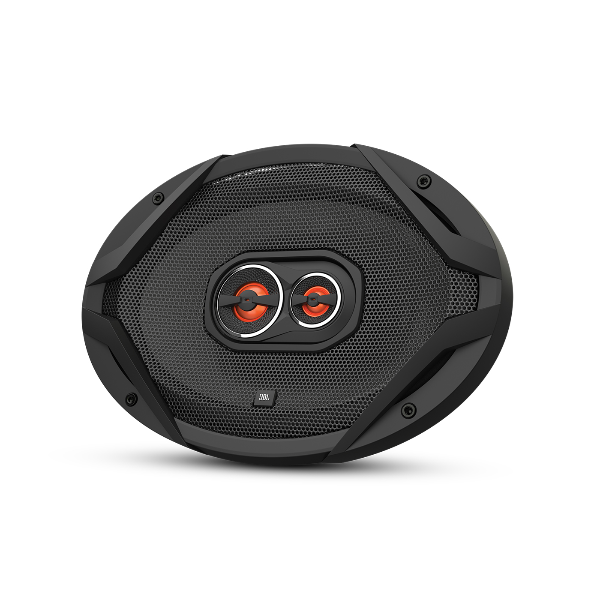

JBL GX963
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
69"
FS(Hz)
45
VAS(l)
12
QTS
0.72
PWR(W)
210
SPL(dB)
0
IMP(Ohm)
2x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
12
Qts
0.72
Qms
5.5
Qes
0.828
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0.294
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
16964
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
69
Max Power(W.)
210
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
