Model

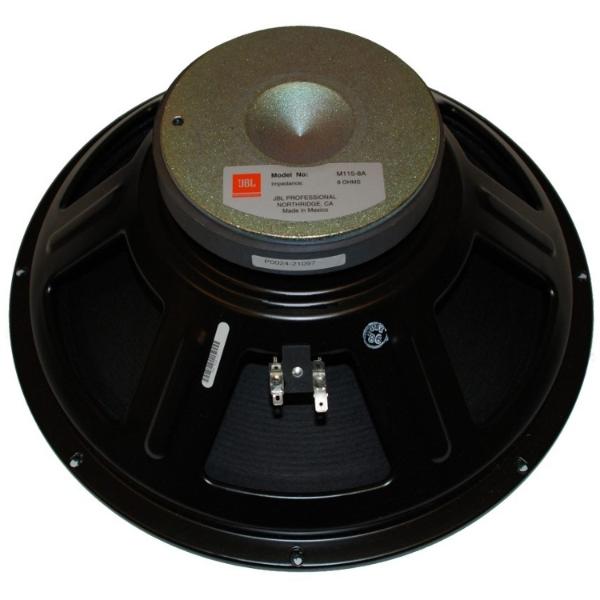

JBL M115-8A
Rating
DIAM
15"
FS(Hz)
46
VAS(l)
225
QTS
0.39
PWR(W)
450
SPL(dB)
99
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
46
Vas(l)
225
Qts
0.39
Qms
5.1
Qes
0.42
Bl(Tm)
14
Mms(gr)
53
Cms(mm/N)
0.226
Rms(kg/s)
3.06
Le(mH)
1.3
Re(Ohm)
5.5
Sd(sq.mm)
84500
Vd(l)
0.431
X-max(mm)
5
X-mech(mm)
8
General Parameters
Diameter (inch)
15
Max Power(W.)
450
RMS Power(W.)
225
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
5.03
Sensitivity(dB) 1-W
99
Sensitivity(dB) 2.8-V
100.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
