Model

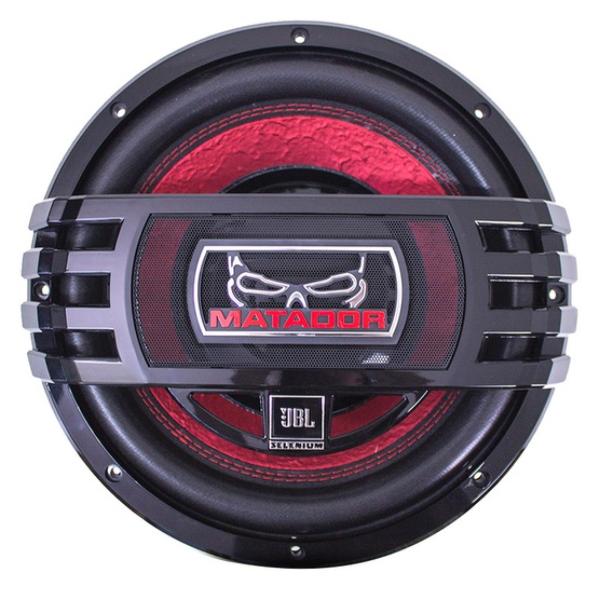

JBL MATADOR 12SW21A DVC
Rating
DIAM
12"
FS(Hz)
45
VAS(l)
42.435
QTS
0.62
PWR(W)
3200
SPL(dB)
89.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
42.4
Qts
0.622
Qms
9.972
Qes
0.663
Bl(Tm)
13.4
Mms(gr)
117
Cms(mm/N)
0.107
Rms(kg/s)
3.315
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
53000
Vd(l)
0.429
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3200
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
191
Magnet Diameter (mm)
192
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
