Model

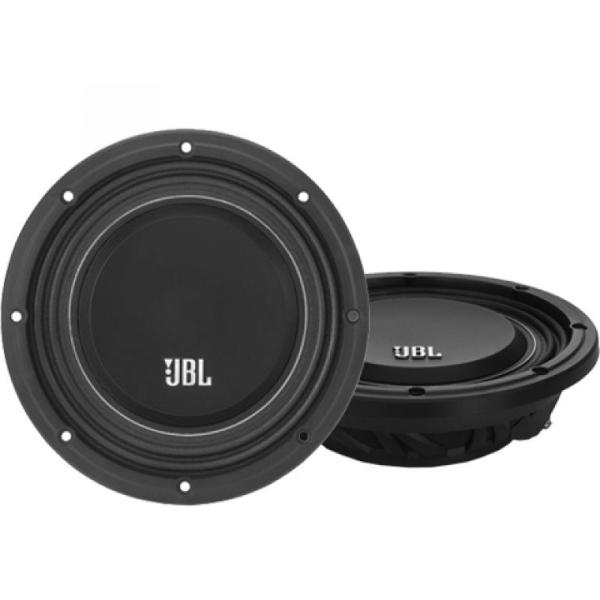

JBL MS-10SD2 SLIM
Rating
DIAM
10"
FS(Hz)
46.3
VAS(l)
8.9
QTS
1.7
PWR(W)
1000
SPL(dB)
78
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
46.3
Vas(l)
8.9
Qts
1.7
Qms
8.2
Qes
2.14
Bl(Tm)
9.6
Mms(gr)
195
Cms(mm/N)
0.05
Rms(kg/s)
6.92
Le(mH)
2.351
Re(Ohm)
3.3
Sd(sq.mm)
33700
Vd(l)
0.202
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.04
Sensitivity(dB) 1-W
78
Sensitivity(dB) 2.8-V
81.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
272
Cutout Diameter (mm)
228
Mounting Depth (mm)
74
Magnet Diameter (mm)
756
Optimum Enclosures
Enclosures
Closed, BP4
