Model

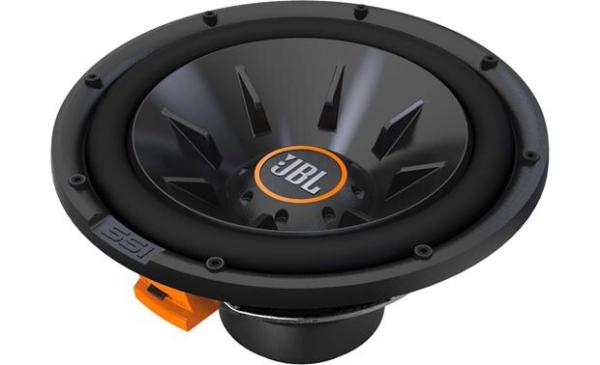

JBL S2-1224-2
Rating
DIAM
12"
FS(Hz)
31.9
VAS(l)
61.2
QTS
0.52
PWR(W)
1000
SPL(dB)
93
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
31.9
Vas(l)
61.2
Qts
0.52
Qms
4.64
Qes
0.59
Bl(Tm)
10.3
Mms(gr)
155
Cms(mm/N)
0.161
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
52280
Vd(l)
0.54
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
275
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
