Model

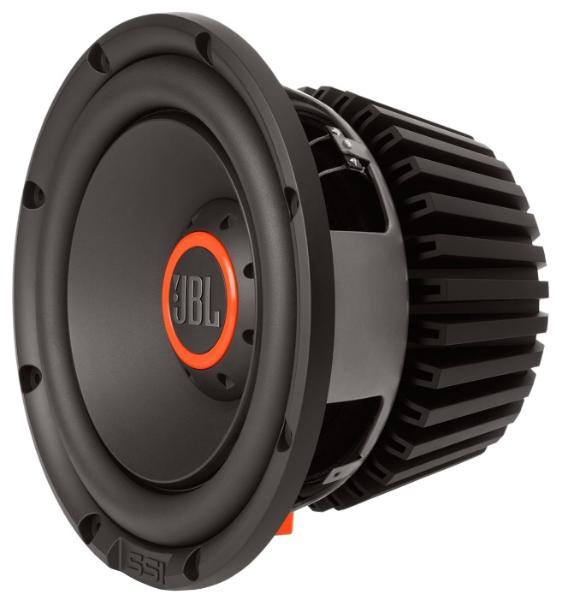

JBL S3-1024-4
Rating
DIAM
10"
FS(Hz)
30.2
VAS(l)
25.27
QTS
0.48
PWR(W)
1350
SPL(dB)
91
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
30.2
Vas(l)
25.3
Qts
0.48
Qms
2.17
Qes
0.62
Bl(Tm)
15
Mms(gr)
185
Cms(mm/N)
0.15
Rms(kg/s)
16.207
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
34636
Vd(l)
0.42
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1350
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
239
Mounting Depth (mm)
175
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
