Model

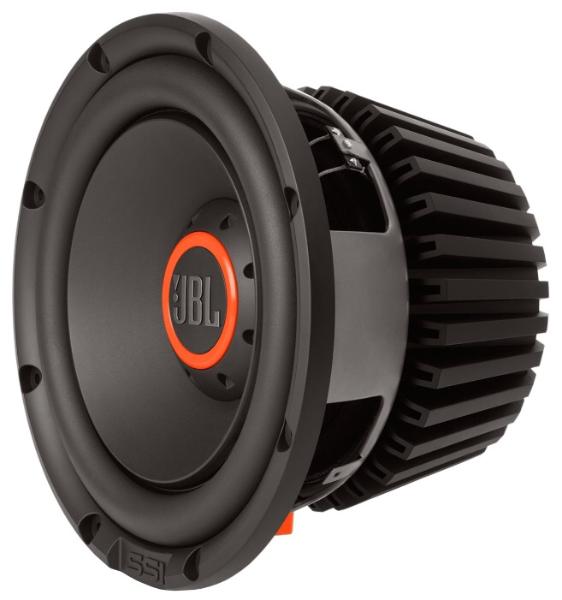

JBL S3-1224-2
Rating
DIAM
12"
FS(Hz)
28.8
VAS(l)
54.6
QTS
0.47
PWR(W)
1500
SPL(dB)
92
IMP(Ohm)
2x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28.8
Vas(l)
54.6
Qts
0.47
Qms
4.29
Qes
0.53
Bl(Tm)
11.7
Mms(gr)
221
Cms(mm/N)
0.138
Rms(kg/s)
9.317
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
53093
Vd(l)
0.64
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
177
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
