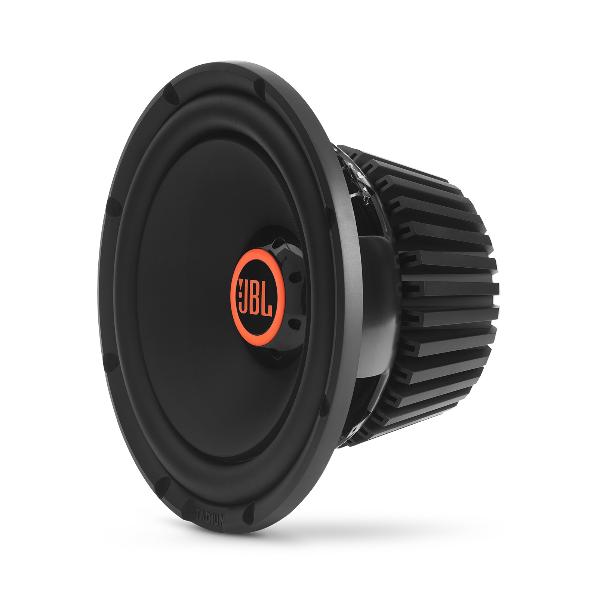

JBL STADIUM 1224
JBL STADIUM 1224
Model

JBL STADIUM 1224

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
8"
FS(Hz)
29.1
VAS(l)
52.6
QTS
0.47
PWR(W)
1500
SPL(dB)
85.4
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
29.1
Vas(l)
52.6
Qts
0.47
Qms
2.56
Qes
0.576
Bl(Tm)
17
Cms(mm/N)
0.132
Rms(kg/s)
16.14
Le(mH)
0.94
Mms(gr)
226
Vd(l)
0.637
Sd(sq.mm)
53100
X-max(mm)
12
X-mech(mm)
0
Re(Ohm)
4

General Parameters

Diameter (inch)
8
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
88.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
324
Cutout Diameter (mm)
282
Mounting Depth (mm)
160
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4
