Model

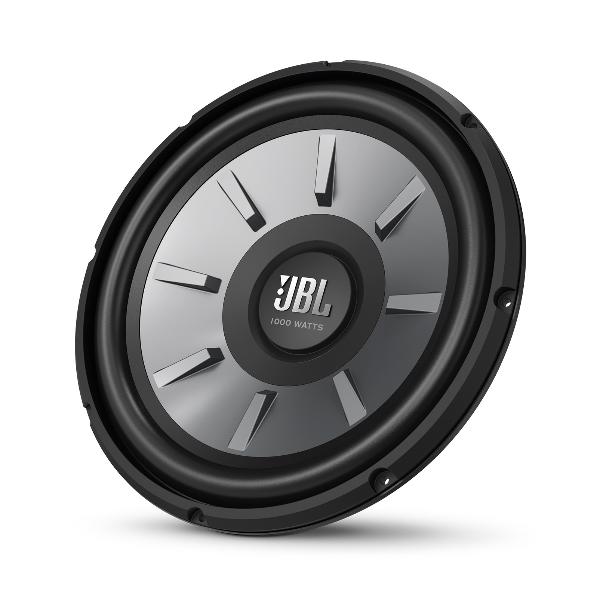

JBL STAGE 1210
Rating
DIAM
12"
FS(Hz)
31.7
VAS(l)
64.6
QTS
0.55
PWR(W)
1000
SPL(dB)
87.2
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.7
Vas(l)
64.6
Qts
0.55
Qms
6.64
Qes
0.6
Bl(Tm)
13.6
Mms(gr)
154
Cms(mm/N)
0.163
Rms(kg/s)
4.628
Le(mH)
2.3
Re(Ohm)
3.6
Sd(sq.mm)
52862
Vd(l)
0.6
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
90.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
310
Cutout Diameter (mm)
280
Mounting Depth (mm)
147
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
