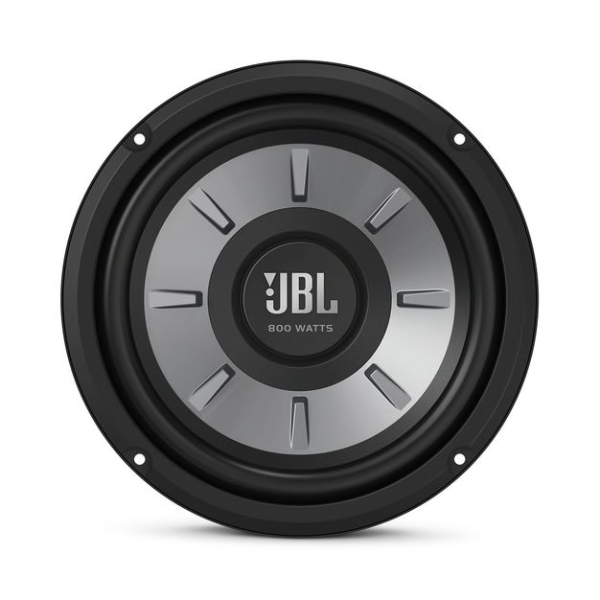

JBL STAGE 810
JBL STAGE 810
Model

JBL STAGE 810

Rating
DIAM
8"
FS(Hz)
41.6
VAS(l)
15.9
QTS
0.35
PWR(W)
800
SPL(dB)
86.7
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
41.6
Vas(l)
15.9
Qts
0.35
Qms
5.46
Qes
0.374
Bl(Tm)
12
Cms(mm/N)
0.26
Rms(kg/s)
2.69
Le(mH)
1.48
Mms(gr)
56
Vd(l)
0.128
Sd(sq.mm)
20765
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
3.7

General Parameters

Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
90.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
206
Cutout Diameter (mm)
178
Mounting Depth (mm)
95
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6
