Model

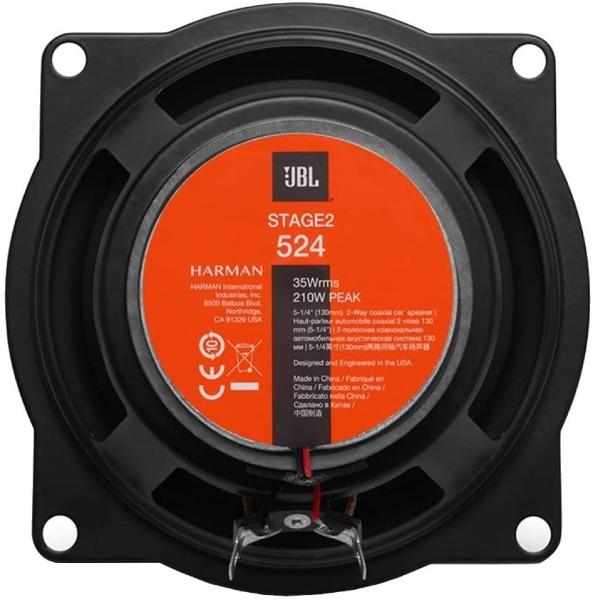

JBL Stage2 524
Rating
DIAM
5"
FS(Hz)
95
VAS(l)
4.803
QTS
0.86
PWR(W)
210
SPL(dB)
87.7
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
95
Vas(l)
4.8
Qts
0.864
Qms
4.525
Qes
1.067
Bl(Tm)
3.1
Mms(gr)
5
Cms(mm/N)
0.533
Rms(kg/s)
0.695
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
8171
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
210
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
129
Cutout Diameter (mm)
115
Mounting Depth (mm)
58
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
