Model

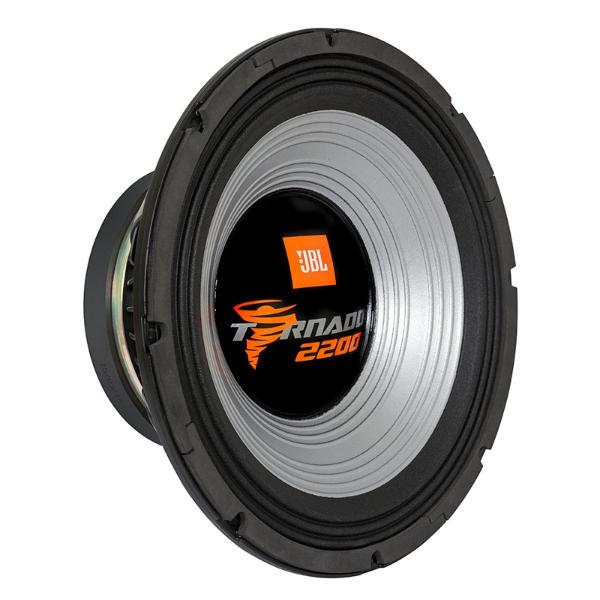

JBL TORNADO 15SWT2200
Rating
DIAM
15"
FS(Hz)
41
VAS(l)
76
QTS
0.44
PWR(W)
2200
SPL(dB)
93
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
76
Qts
0.44
Qms
16.34
Qes
0.45
Bl(Tm)
18.4
Mms(gr)
189
Cms(mm/N)
0.08
Rms(kg/s)
2.974
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
81844
Vd(l)
0.862
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2200
RMS Power(W.)
1100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
346
Mounting Depth (mm)
175
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
BP6P, Vented
