Model

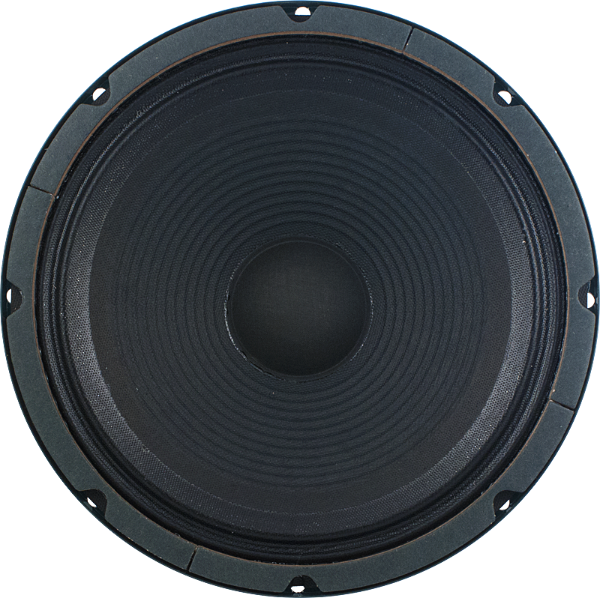

Jensen MOD 10-50 16
Rating
DIAM
10"
FS(Hz)
101
VAS(l)
20.4
QTS
1.53
PWR(W)
100
SPL(dB)
92.8
IMP(Ohm)
16x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
101
Vas(l)
20.4
Qts
1.53
Qms
18.07
Qes
1.67
Bl(Tm)
9.3
Mms(gr)
19
Cms(mm/N)
0.134
Rms(kg/s)
0.65
Le(mH)
1.08
Re(Ohm)
16
Sd(sq.mm)
33000
Vd(l)
0.05
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
1.21
Sensitivity(dB) 1-W
92.8
Sensitivity(dB) 2.8-V
89.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
259
Cutout Diameter (mm)
231
Mounting Depth (mm)
92
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
