Model

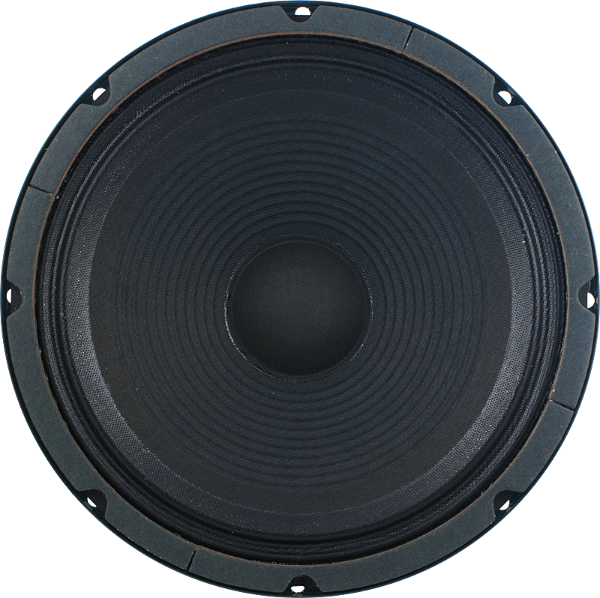

Jensen MOD 10-50 32
Rating
DIAM
10"
FS(Hz)
110.6
VAS(l)
14.4
QTS
2.47
PWR(W)
100
SPL(dB)
91.1
IMP(Ohm)
32x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
110.6
Vas(l)
14.4
Qts
2.47
Qms
16.22
Qes
2.29
Bl(Tm)
11.2
Mms(gr)
21
Cms(mm/N)
0.101
Rms(kg/s)
0.883
Le(mH)
1.6
Re(Ohm)
24.5
Sd(sq.mm)
33010
Vd(l)
0.066
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
32
Reference efficiency η0(%)
0.82
Sensitivity(dB) 1-W
91.1
Sensitivity(dB) 2.8-V
86.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
259
Cutout Diameter (mm)
231
Mounting Depth (mm)
92
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, BP4
