Model

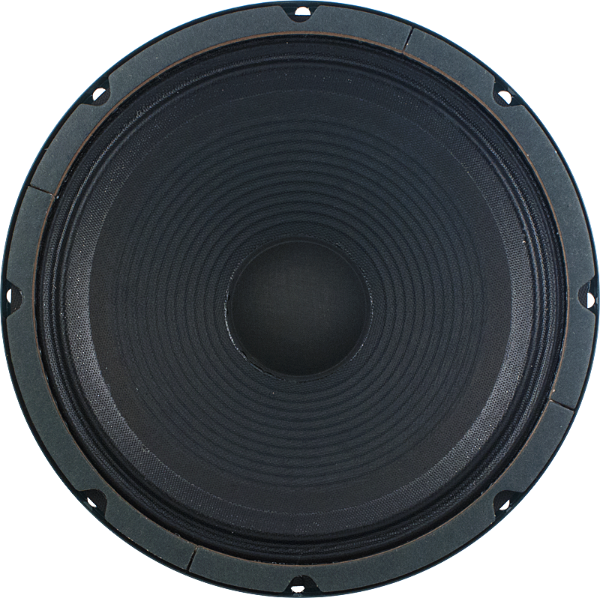

Jensen MOD 10-50 4
Rating
DIAM
10"
FS(Hz)
101.6
VAS(l)
20.8
QTS
1.24
PWR(W)
100
SPL(dB)
94
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
101.6
Vas(l)
20.8
Qts
1.24
Qms
16.16
Qes
1.34
Bl(Tm)
5.2
Mms(gr)
18
Cms(mm/N)
0.136
Rms(kg/s)
0.715
Le(mH)
0.39
Re(Ohm)
3.1
Sd(sq.mm)
33010
Vd(l)
0.066
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.57
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
98.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
259
Cutout Diameter (mm)
231
Mounting Depth (mm)
92
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
