Model

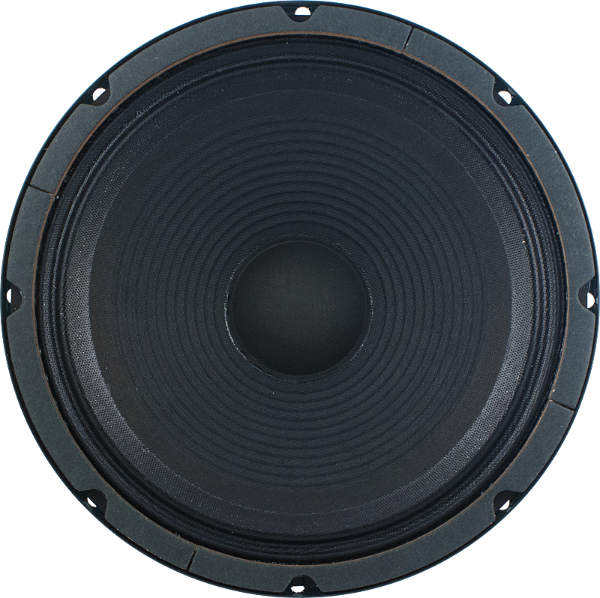

Jensen MOD 10-50 8
Rating
DIAM
10"
FS(Hz)
107
VAS(l)
20.8
QTS
1.2
PWR(W)
100
SPL(dB)
94.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
107
Vas(l)
20.8
Qts
1.2
Qms
16.84
Qes
1.29
Bl(Tm)
7.3
Mms(gr)
17
Cms(mm/N)
0.134
Rms(kg/s)
0.659
Le(mH)
0.62
Re(Ohm)
6.2
Sd(sq.mm)
33000
Vd(l)
0.05
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.9
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
95.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
259
Cutout Diameter (mm)
231
Mounting Depth (mm)
92
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
