Model

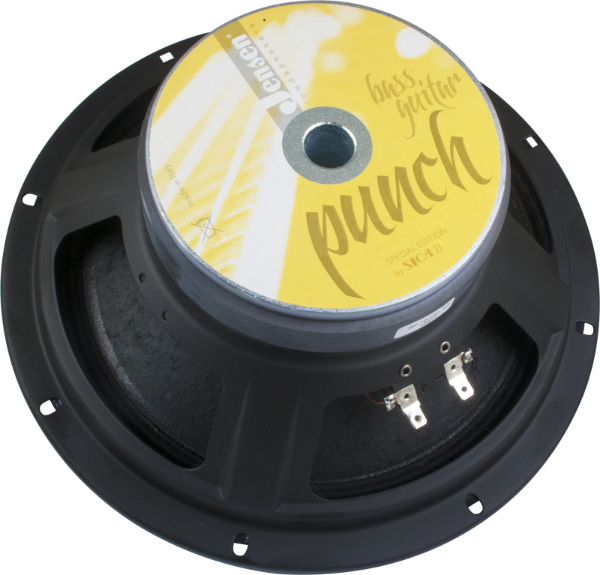

Jensen PUNCH BP 10/150
Rating
DIAM
10"
FS(Hz)
55
VAS(l)
42.6
QTS
0.33
PWR(W)
300
SPL(dB)
94.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
42.6
Qts
0.33
Qms
5.9
Qes
0.35
Bl(Tm)
13.6
Mms(gr)
31
Cms(mm/N)
0.273
Rms(kg/s)
1.79
Le(mH)
0.85
Re(Ohm)
6.1
Sd(sq.mm)
33010
Vd(l)
0.079
X-max(mm)
2
X-mech(mm)
4
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.95
Sensitivity(dB) 1-W
94.9
Sensitivity(dB) 2.8-V
96.1
Mounting Information
Speaker Displacement (l)
1.2
Total Diameter (mm)
266
Cutout Diameter (mm)
235
Mounting Depth (mm)
102
Magnet Diameter (mm)
134
Optimum Enclosures
Enclosures
Vented, BP6P
