Model

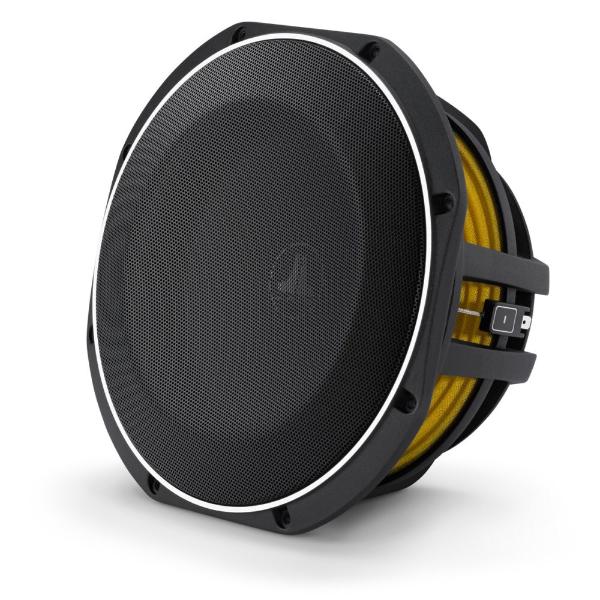

JL Audio 10TW1-4
Rating
DIAM
10"
FS(Hz)
38
VAS(l)
12.2
QTS
0.6
PWR(W)
600
SPL(dB)
82.2
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
12.2
Qts
0.6
Qms
10.07
Qes
0.638
Bl(Tm)
13.9
Mms(gr)
147
Cms(mm/N)
0.119
Rms(kg/s)
3.495
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
26800
Vd(l)
0.268
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.33
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
111
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
