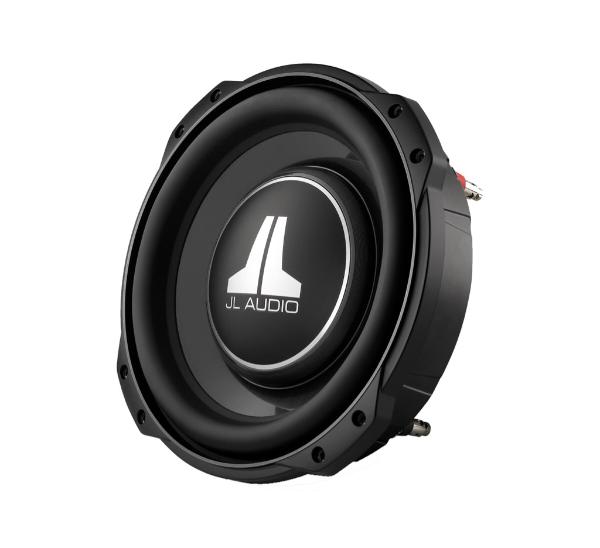

JL Audio 10TW3-D4
JL Audio 10TW3-D4
Model

JL Audio 10TW3-D4

Rating
DIAM
10"
FS(Hz)
32.3
VAS(l)
19.8
QTS
0.62
PWR(W)
800
SPL(dB)
82.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
32.3
Vas(l)
19.8
Qts
0.62
Qms
11.35
Qes
0.66
Bl(Tm)
25.4
Mms(gr)
231
Cms(mm/N)
0.105
Rms(kg/s)
4.134
Le(mH)
0
Re(Ohm)
9
Sd(sq.mm)
36500
Vd(l)
0.56
X-max(mm)
15
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
82.1
Sensitivity(dB) 2.8-V
81.4

Mounting Information

Speaker Displacement (l)
0.54
Total Diameter (mm)
0
Cutout Diameter (mm)
244
Mounting Depth (mm)
83
Magnet Diameter (mm)
130

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
