Model

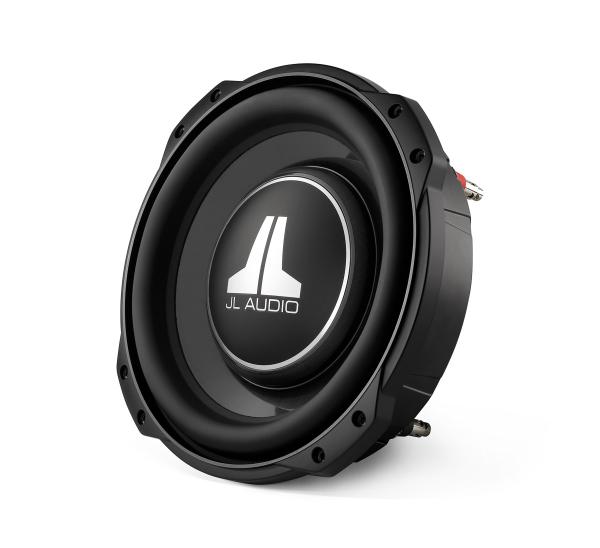

JL Audio 10TW3-D8
Rating
DIAM
10"
FS(Hz)
39.3
VAS(l)
14.4
QTS
0.76
PWR(W)
800
SPL(dB)
82.3
IMP(Ohm)
8x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.3
Vas(l)
14.4
Qts
0.761
Qms
9.84
Qes
0.83
Bl(Tm)
31.1
Mms(gr)
216
Cms(mm/N)
0.076
Rms(kg/s)
5.42
Le(mH)
0
Re(Ohm)
15
Sd(sq.mm)
36500
Vd(l)
0.56
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.54
Total Diameter (mm)
0
Cutout Diameter (mm)
244
Mounting Depth (mm)
83
Magnet Diameter (mm)
130
Optimum Enclosures
Enclosures
Closed, BP4
