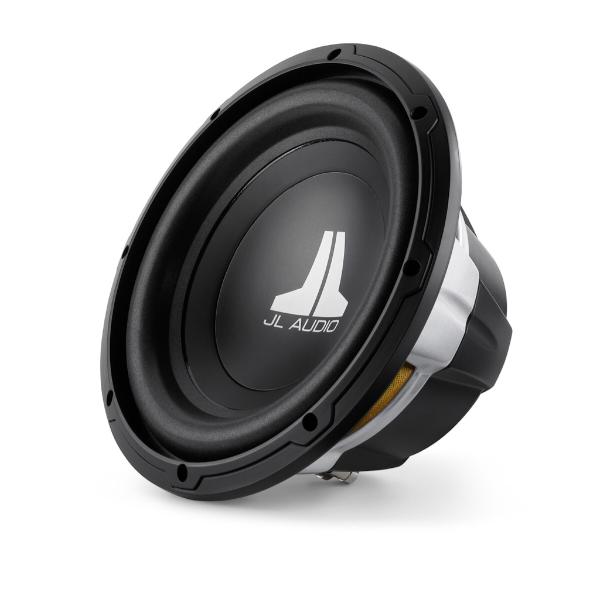

JL Audio 10W0V3-4
JL Audio 10W0V3-4
Model

JL Audio 10W0V3-4

Rating
Star iconStar iconStar iconStar iconStar icon
DIAM
10"
FS(Hz)
32.1
VAS(l)
31
QTS
0.6
PWR(W)
600
SPL(dB)
84.1
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
32.1
Vas(l)
31
Qts
0.604
Qms
10.752
Qes
0.64
Bl(Tm)
12.3
Cms(mm/N)
0.219
Rms(kg/s)
2.106
Le(mH)
0
Mms(gr)
112
Vd(l)
0.36
Sd(sq.mm)
31600
X-max(mm)
11
X-mech(mm)
0
Re(Ohm)
4.3

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0.96
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
124
Magnet Diameter (mm)
128

Optimum Enclosures

Enclosures
Closed, BP4
