Model

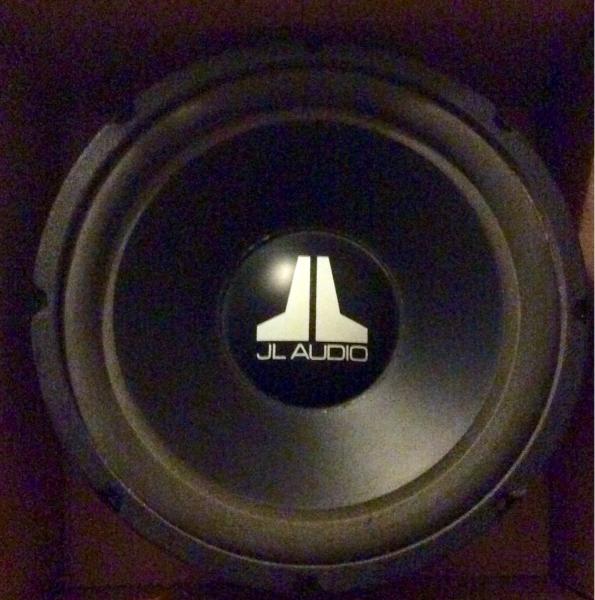

JL Audio 10W1-4
Rating
DIAM
10"
FS(Hz)
23.6
VAS(l)
95.1
QTS
0.4
PWR(W)
300
SPL(dB)
0
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
23.6
Vas(l)
95.1
Qts
0.397
Qms
6.673
Qes
0.422
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.133
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
111
Magnet Diameter (mm)
124
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
