Model

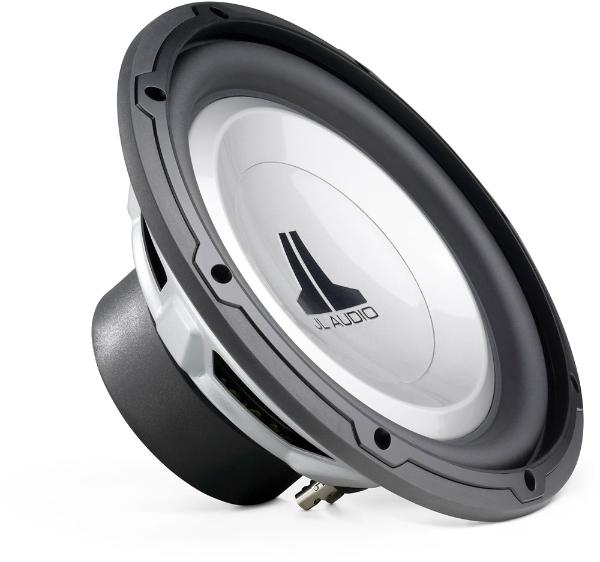

JL Audio 10W1V2-8
Rating
DIAM
10"
FS(Hz)
26.5
VAS(l)
49.1
QTS
0.44
PWR(W)
600
SPL(dB)
84.7
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
26.5
Vas(l)
49.1
Qts
0.438
Qms
6.115
Qes
0.472
Bl(Tm)
27.5
Mms(gr)
322
Cms(mm/N)
0.112
Rms(kg/s)
8.76
Le(mH)
0
Re(Ohm)
6.7
Sd(sq.mm)
53522
Vd(l)
0.535
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
85.5
Mounting Information
Speaker Displacement (l)
0.708
Total Diameter (mm)
267
Cutout Diameter (mm)
230
Mounting Depth (mm)
110
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
