Model

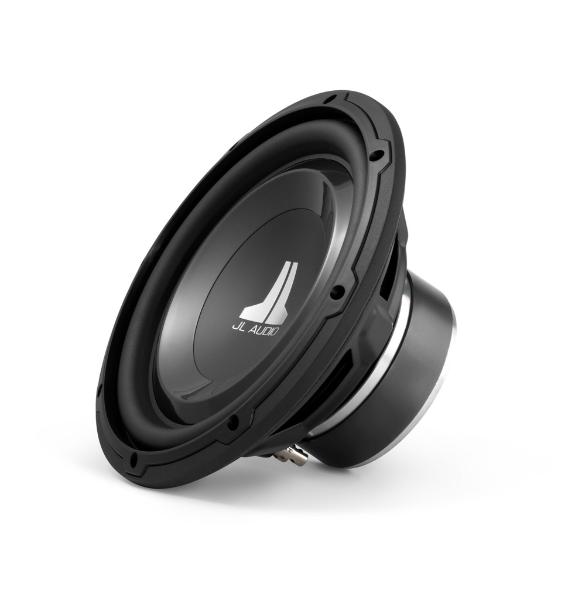

JL Audio 10W1V3-2
Rating
DIAM
10"
FS(Hz)
25.2
VAS(l)
44.1
QTS
0.44
PWR(W)
600
SPL(dB)
83.9
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
25.2
Vas(l)
44.1
Qts
0.436
Qms
7.246
Qes
0.464
Bl(Tm)
10.8
Mms(gr)
153
Cms(mm/N)
0.26
Rms(kg/s)
3.347
Le(mH)
0
Re(Ohm)
2.2
Sd(sq.mm)
34600
Vd(l)
0.381
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.05
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
117
Magnet Diameter (mm)
125
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
