Model

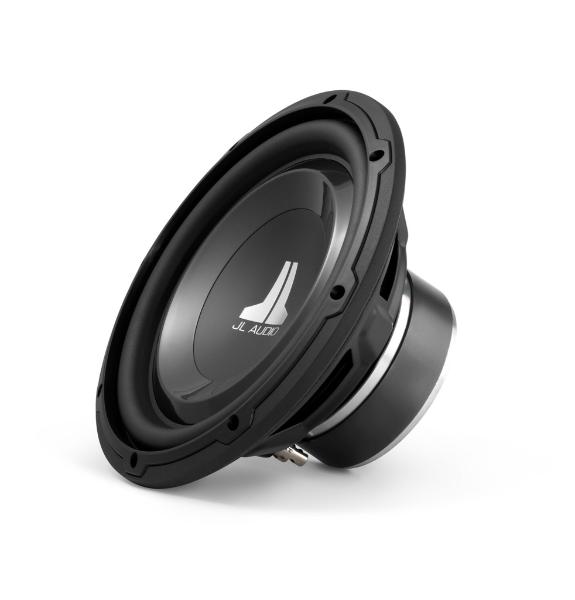

JL Audio 10W1V3-4
Rating
DIAM
10"
FS(Hz)
26.1
VAS(l)
43.4
QTS
0.45
PWR(W)
600
SPL(dB)
84.2
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
26.1
Vas(l)
43.4
Qts
0.446
Qms
7.243
Qes
0.475
Bl(Tm)
14
Mms(gr)
145
Cms(mm/N)
0.256
Rms(kg/s)
3.282
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
34600
Vd(l)
0.381
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.05
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
117
Magnet Diameter (mm)
125
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
