Model

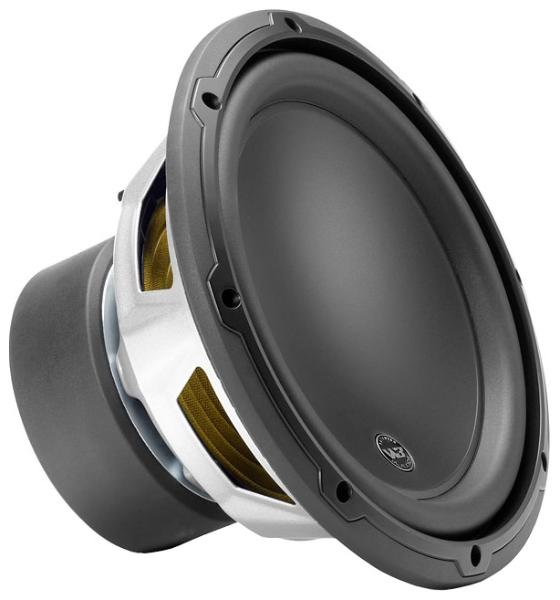

JL Audio 10W3V3-2
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
32.2
QTS
0.49
PWR(W)
1000
SPL(dB)
85.4
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
32.2
Qts
0.495
Qms
7.027
Qes
0.533
Bl(Tm)
9
Mms(gr)
122
Cms(mm/N)
0.191
Rms(kg/s)
3.594
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
34500
Vd(l)
0.483
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.39
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
151
Magnet Diameter (mm)
133
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
