Model

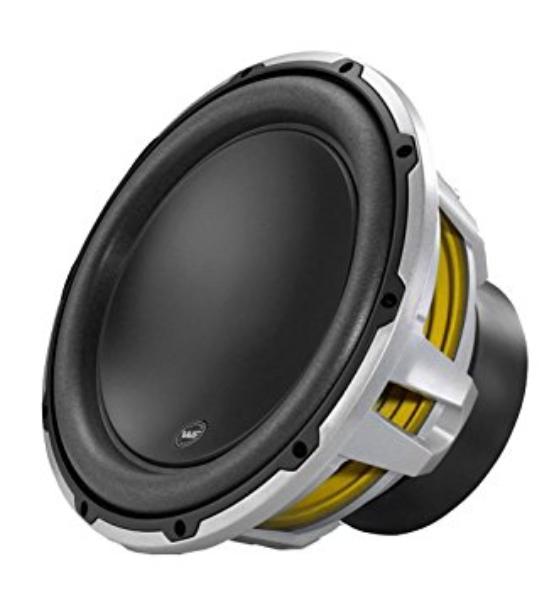

JL Audio 10W6V2-D4
Rating
DIAM
10"
FS(Hz)
28.5
VAS(l)
33.4
QTS
0.47
PWR(W)
1200
SPL(dB)
83.8
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28.5
Vas(l)
33.4
Qts
0.469
Qms
8.458
Qes
0.497
Bl(Tm)
18.2
Mms(gr)
146
Cms(mm/N)
0.214
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6.3
Sd(sq.mm)
33200
Vd(l)
0.505
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.9
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
175
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
