Model

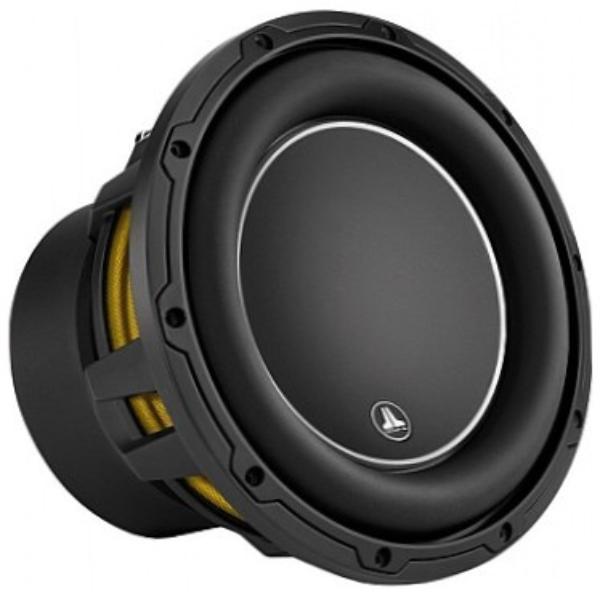

JL Audio 10W6V3-D4
Rating
DIAM
10"
FS(Hz)
30.1
VAS(l)
23.3
QTS
0.51
PWR(W)
1200
SPL(dB)
82.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.1
Vas(l)
23.3
Qts
0.513
Qms
9.228
Qes
0.544
Bl(Tm)
19.7
Mms(gr)
172
Cms(mm/N)
0.162
Rms(kg/s)
3.536
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
31800
Vd(l)
0.6
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.5
Sensitivity(dB) 2.8-V
83.4
Mounting Information
Speaker Displacement (l)
2.1
Total Diameter (mm)
267
Cutout Diameter (mm)
229
Mounting Depth (mm)
175
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
