Model

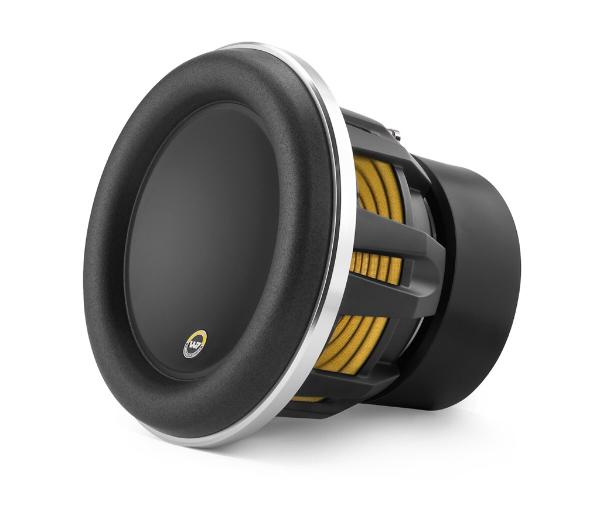

JL Audio 10W7AE-3
Rating
DIAM
10"
FS(Hz)
30.6
VAS(l)
36.1
QTS
0.54
PWR(W)
1500
SPL(dB)
84.4
IMP(Ohm)
3x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30.6
Vas(l)
36.1
Qts
0.537
Qms
7.647
Qes
0.578
Bl(Tm)
12
Mms(gr)
158
Cms(mm/N)
0.171
Rms(kg/s)
3.978
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
38600
Vd(l)
0.89
X-max(mm)
23
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
1
Impedance Z-Nom(Ohm)
3
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
88.9
Mounting Information
Speaker Displacement (l)
2.5
Total Diameter (mm)
267
Cutout Diameter (mm)
222
Mounting Depth (mm)
203
Magnet Diameter (mm)
166
Optimum Enclosures
Enclosures
Closed, BP4
