Model

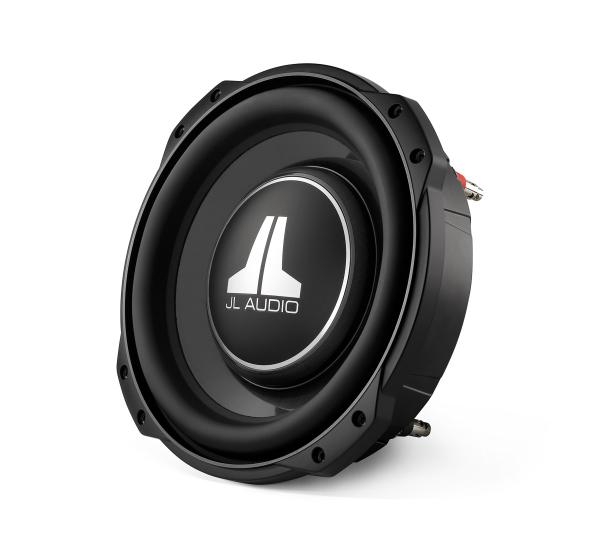

JL Audio 12TW3-D8
Rating
DIAM
12"
FS(Hz)
32.7
VAS(l)
34.1
QTS
0.67
PWR(W)
800
SPL(dB)
84.2
IMP(Ohm)
8x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.7
Vas(l)
34.1
Qts
0.668
Qms
10.071
Qes
0.72
Bl(Tm)
34.7
Mms(gr)
286
Cms(mm/N)
0.083
Rms(kg/s)
5.83
Le(mH)
0
Re(Ohm)
14.8
Sd(sq.mm)
53900
Vd(l)
0.82
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.82
Total Diameter (mm)
0
Cutout Diameter (mm)
295
Mounting Depth (mm)
89
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, BP4
