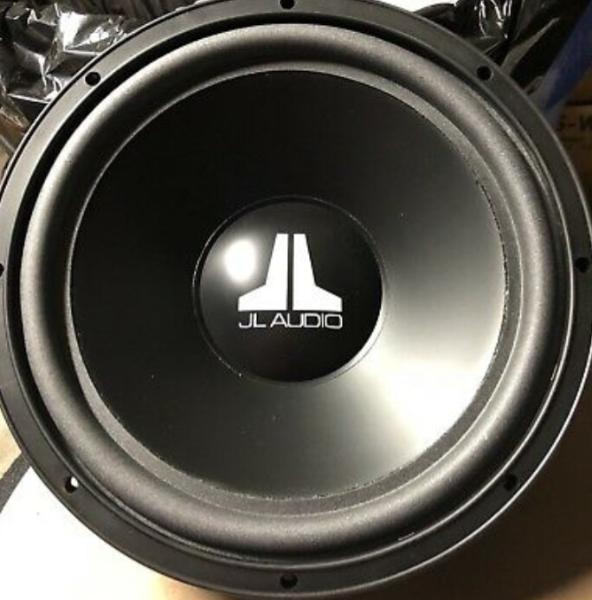

JL Audio 12W0-8
JL Audio 12W0-8
Model

JL Audio 12W0-8

Rating
DIAM
12"
FS(Hz)
23.2
VAS(l)
160
QTS
0.43
PWR(W)
250
SPL(dB)
88.3
IMP(Ohm)
8x1
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
23.2
Vas(l)
160
Qts
0.426
Qms
9
Qes
0.447
Bl(Tm)
15.7
Mms(gr)
118
Cms(mm/N)
0.4
Rms(kg/s)
1.91
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
53097
Vd(l)
0.458
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.43
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
89.3

Mounting Information

Speaker Displacement (l)
1.982
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
152
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
