Model

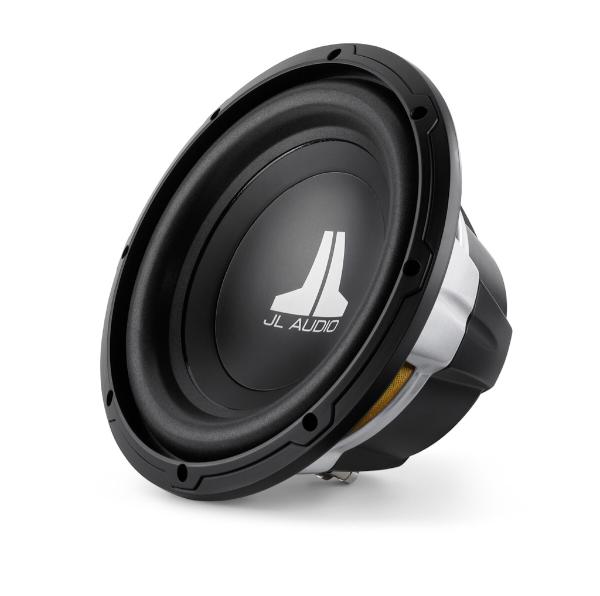

JL Audio 12W0V3-4
Rating
DIAM
12"
FS(Hz)
32.1
VAS(l)
71.6
QTS
0.67
PWR(W)
600
SPL(dB)
85.6
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
32.1
Vas(l)
71.6
Qts
0.67
Qms
10.709
Qes
0.715
Bl(Tm)
11.7
Mms(gr)
113
Cms(mm/N)
0.218
Rms(kg/s)
2.124
Le(mH)
0
Re(Ohm)
4.3
Sd(sq.mm)
48100
Vd(l)
0.55
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.36
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
137
Magnet Diameter (mm)
128
Optimum Enclosures
Enclosures
Closed, BP4
