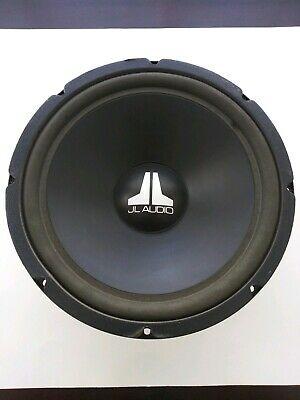

JL Audio 12W1-8
JL Audio 12W1-8
Model

JL Audio 12W1-8

Rating
DIAM
12"
FS(Hz)
24
VAS(l)
177.3
QTS
0.49
PWR(W)
250
SPL(dB)
88.6
IMP(Ohm)
8x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24
Vas(l)
177.3
Qts
0.49
Qms
8.897
Qes
0.519
Bl(Tm)
14.7
Mms(gr)
105
Cms(mm/N)
0.418
Rms(kg/s)
1.78
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
50645
Vd(l)
0.405
X-max(mm)
8
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.614
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
140
Magnet Diameter (mm)
124

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
