Model

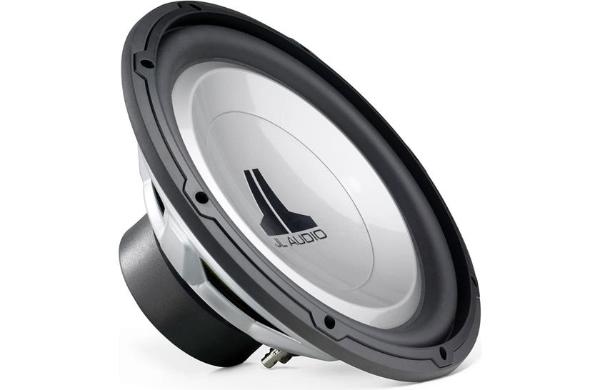

JL Audio 12W1V2-4
Rating
DIAM
12"
FS(Hz)
23.7
VAS(l)
105.9
QTS
0.41
PWR(W)
600
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
23.7
Vas(l)
105.9
Qts
0.414
Qms
6.465
Qes
0.443
Bl(Tm)
15.2
Mms(gr)
167
Cms(mm/N)
0.271
Rms(kg/s)
3.836
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
52500
Vd(l)
0.499
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
89.8
Mounting Information
Speaker Displacement (l)
0.991
Total Diameter (mm)
318
Cutout Diameter (mm)
281
Mounting Depth (mm)
130
Magnet Diameter (mm)
121
Optimum Enclosures
Enclosures
Closed, BP4
