Model

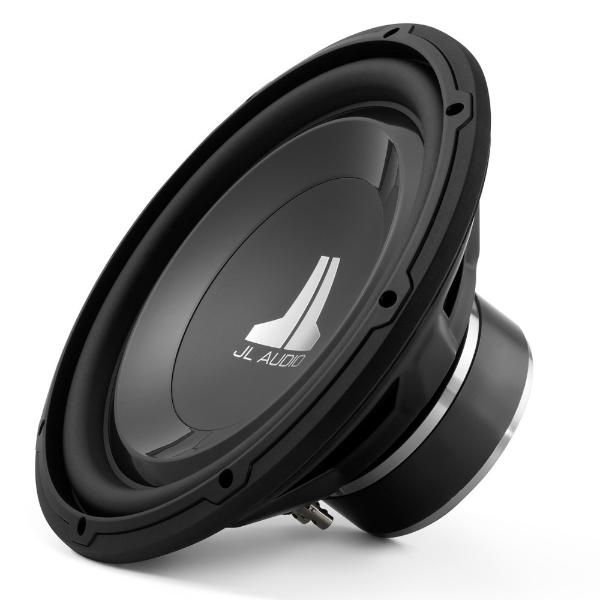

JL Audio 12W1V3-4
Rating
DIAM
12"
FS(Hz)
26.2
VAS(l)
76.6
QTS
0.5
PWR(W)
600
SPL(dB)
86.1
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
26.2
Vas(l)
76.6
Qts
0.5
Qms
8.2
Qes
0.533
Bl(Tm)
15.1
Mms(gr)
188
Cms(mm/N)
0.196
Rms(kg/s)
3.778
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
52500
Vd(l)
0.58
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.47
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
137
Magnet Diameter (mm)
133
Optimum Enclosures
Enclosures
Closed, BP4
