Model

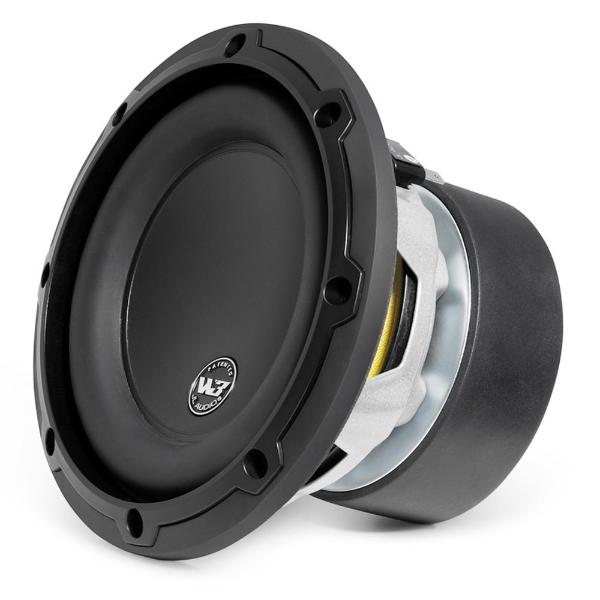

JL Audio 6W3V3-4
Rating
DIAM
7"
FS(Hz)
41.8
VAS(l)
5.1
QTS
0.51
PWR(W)
300
SPL(dB)
80.5
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
41.8
Vas(l)
5.1
Qts
0.508
Qms
11.027
Qes
0.533
Bl(Tm)
9.3
Mms(gr)
50
Cms(mm/N)
0.288
Rms(kg/s)
1.198
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
11200
Vd(l)
0.1
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
80.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.57
Total Diameter (mm)
0
Cutout Diameter (mm)
140
Mounting Depth (mm)
108
Magnet Diameter (mm)
108
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
