Model

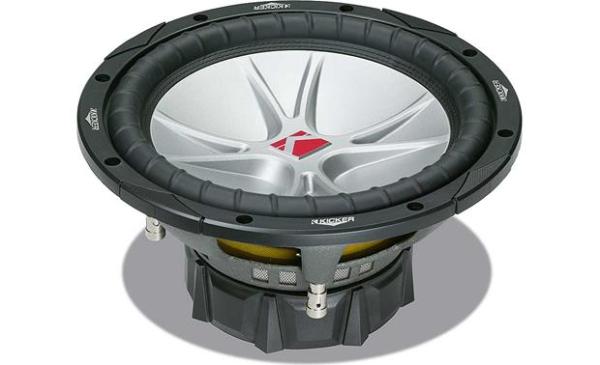

Kicker 07CVR104(COMP VR 10)
Rating
DIAM
10"
FS(Hz)
33.2
VAS(l)
40.2
QTS
0.6
PWR(W)
800
SPL(dB)
85.5
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.2
Vas(l)
40.2
Qts
0.597
Qms
8.93
Qes
0.64
Bl(Tm)
16
Mms(gr)
118
Cms(mm/N)
0.195
Rms(kg/s)
2.75
Le(mH)
5.79
Re(Ohm)
6.7
Sd(sq.mm)
37871
Vd(l)
0.529
X-max(mm)
14
X-mech(mm)
13
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
86.2
Mounting Information
Speaker Displacement (l)
1.2
Total Diameter (mm)
271
Cutout Diameter (mm)
235
Mounting Depth (mm)
138
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
