Model

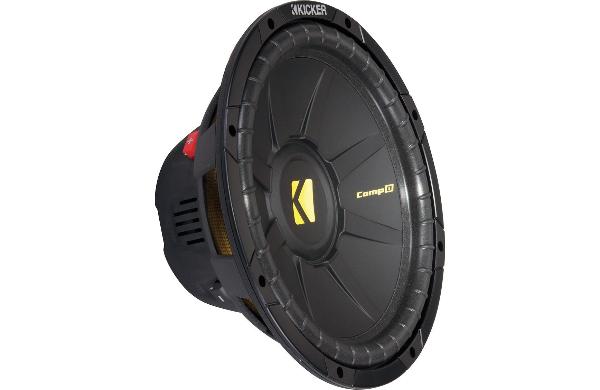

Kicker 40CWD124
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
95.2
QTS
0.56
PWR(W)
600
SPL(dB)
88.3
IMP(Ohm)
4x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
95.2
Qts
0.559
Qms
10.2
Qes
0.591
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
92
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
