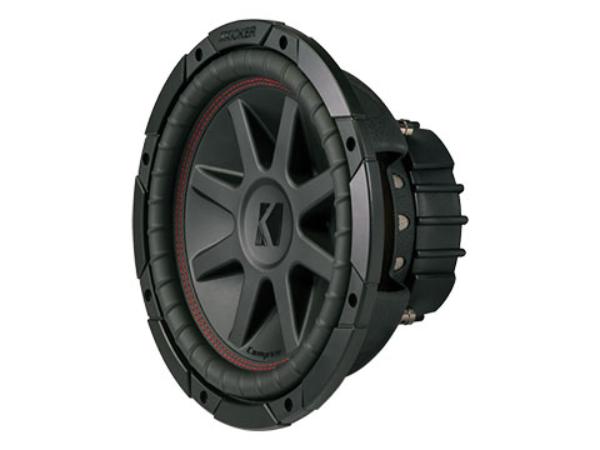

Kicker 43CVR102(COMPVR 10)
Kicker 43CVR102(COMPVR 10)
Model

Kicker 43CVR102(COMPVR 10)

Rating
DIAM
10"
FS(Hz)
43.8
VAS(l)
16.2
QTS
0.84
PWR(W)
700
SPL(dB)
83.6
IMP(Ohm)
2x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
43.8
Vas(l)
16.2
Qts
0.838
Qms
10.03
Qes
0.914
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
140
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
