Model

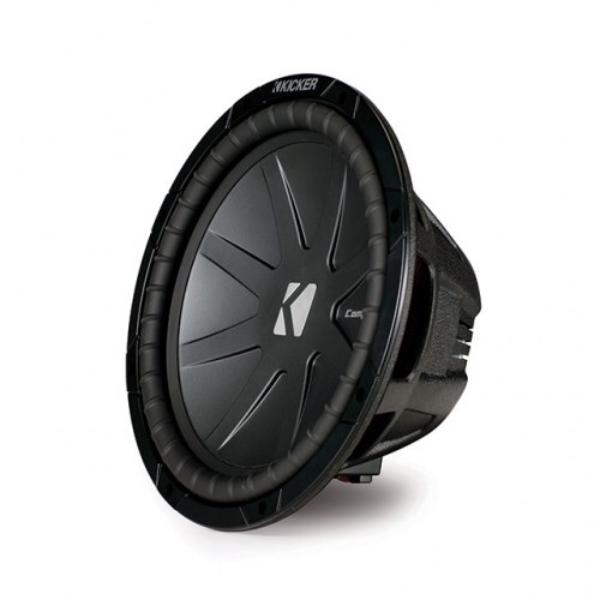

Kicker 43CWR102(COMPR 10)
Rating
DIAM
10"
FS(Hz)
34
VAS(l)
24.4
QTS
0.52
PWR(W)
1200
SPL(dB)
84.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
24.4
Qts
0.516
Qms
12.5
Qes
0.538
Bl(Tm)
15.1
Mms(gr)
158
Cms(mm/N)
0.139
Rms(kg/s)
2.7
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
35145
Vd(l)
0.492
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
87.7
Mounting Information
Speaker Displacement (l)
0.99
Total Diameter (mm)
254
Cutout Diameter (mm)
231
Mounting Depth (mm)
132
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
