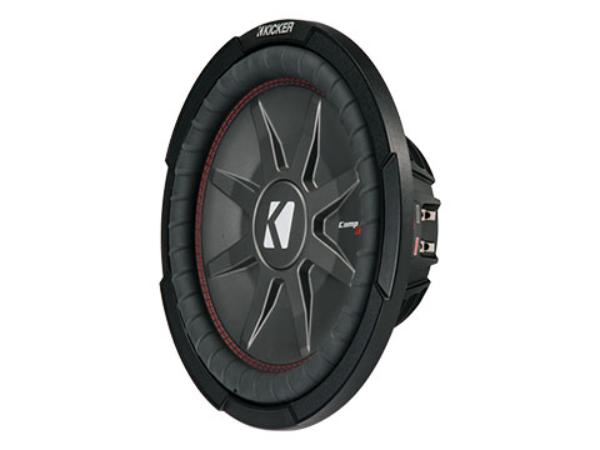

Kicker 43CWRT121(COMPRT 12)
Kicker 43CWRT121(COMPRT 12)
Model

Kicker 43CWRT121(COMPRT 12)

Rating
DIAM
12"
FS(Hz)
29.4
VAS(l)
54.3
QTS
0.59
PWR(W)
1000
SPL(dB)
85.5
IMP(Ohm)
1x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
29.4
Vas(l)
54.3
Qts
0.59
Qms
13.723
Qes
0.616
Bl(Tm)
10.9
Mms(gr)
197
Cms(mm/N)
0.149
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
50671
Vd(l)
0
X-max(mm)
11
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
96
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
