Model

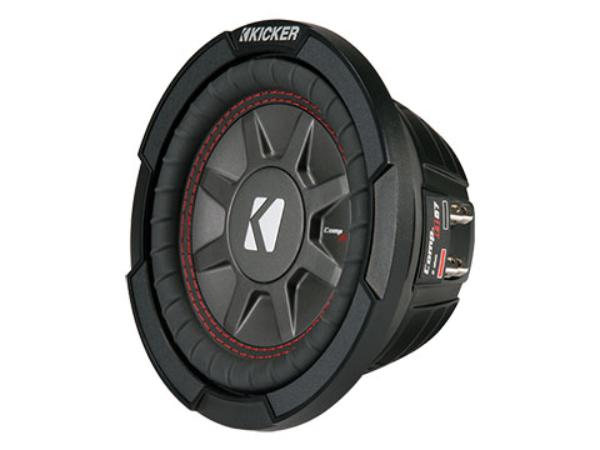

Kicker 43CWRT671(COMPRT 6.5)
Rating
DIAM
7"
FS(Hz)
55.6
VAS(l)
4.3
QTS
0.58
PWR(W)
300
SPL(dB)
82.6
IMP(Ohm)
1x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
55.6
Vas(l)
4.3
Qts
0.578
Qms
11.245
Qes
0.609
Bl(Tm)
7.3
Mms(gr)
43
Cms(mm/N)
0.189
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
12668
Vd(l)
0
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
143
Mounting Depth (mm)
70
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
