Model

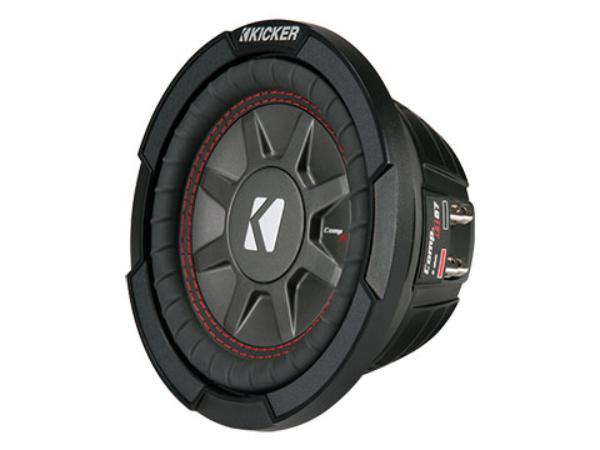

Kicker 43CWRT82(COMPRT 8)
Rating
DIAM
8"
FS(Hz)
43.7
VAS(l)
8
QTS
0.65
PWR(W)
600
SPL(dB)
81.8
IMP(Ohm)
2x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
43.7
Vas(l)
8
Qts
0.645
Qms
13.924
Qes
0.676
Bl(Tm)
8.6
Mms(gr)
88
Cms(mm/N)
0.151
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
19359
Vd(l)
0
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
177
Mounting Depth (mm)
67
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
