Model

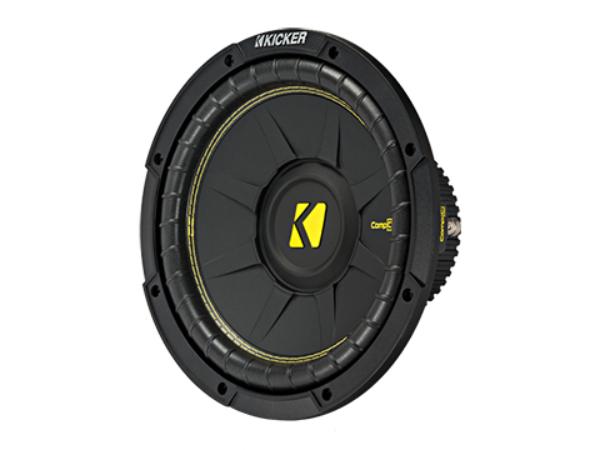

Kicker 44CWCD104(COMPC 10)
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
46.9
QTS
0.58
PWR(W)
500
SPL(dB)
86.2
IMP(Ohm)
4x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
46.9
Qts
0.585
Qms
9.157
Qes
0.625
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
122
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
