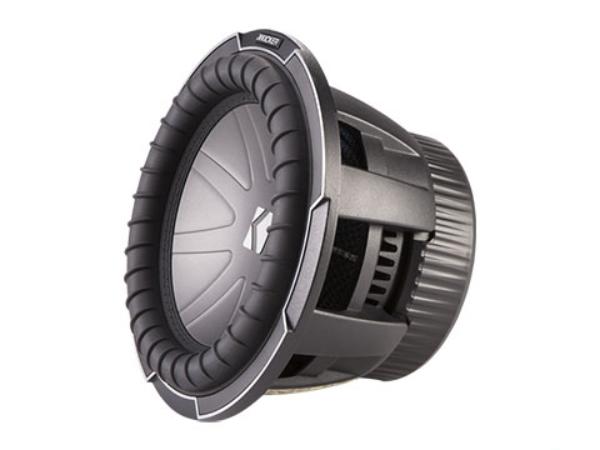

Kicker CWQ104(COMPQ 10)
Kicker CWQ104(COMPQ 10)
Model

Kicker CWQ104(COMPQ 10)

Rating
DIAM
10"
FS(Hz)
38
VAS(l)
16.8
QTS
0.44
PWR(W)
1400
SPL(dB)
85.7
IMP(Ohm)
4x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
38
Vas(l)
16.8
Qts
0.437
Qms
8.916
Qes
0.46
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
162
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
