Model

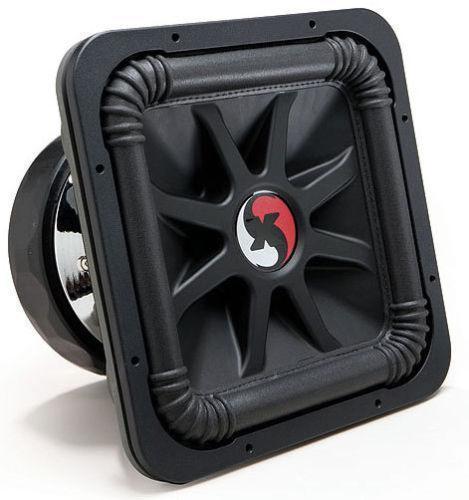

Kicker SOLO X 18(S18X D4)
Rating
DIAM
18"
FS(Hz)
25.2
VAS(l)
158.4
QTS
0.41
PWR(W)
10000
SPL(dB)
89.5
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25.2
Vas(l)
158.4
Qts
0.406
Qms
7.302
Qes
0.43
Bl(Tm)
44.8
Mms(gr)
728
Cms(mm/N)
0.055
Rms(kg/s)
15.79
Le(mH)
0
Re(Ohm)
7.5
Sd(sq.mm)
142483
Vd(l)
3.491
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
10000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
8.1
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
289
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
