Model

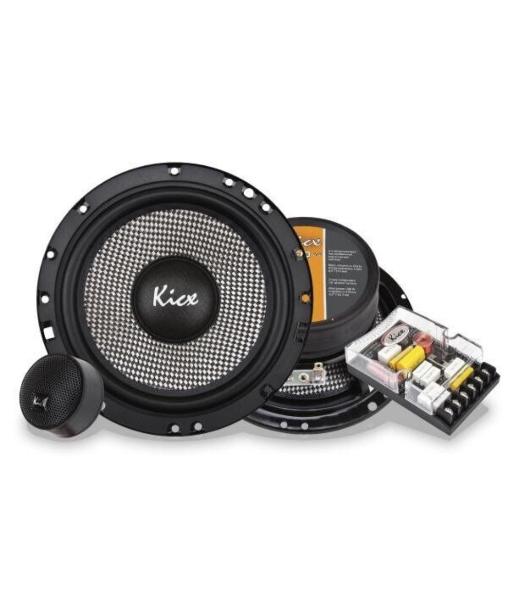

Kicx GFQ-6.2
Rating
DIAM
6"
FS(Hz)
85
VAS(l)
4.4
QTS
0.78
PWR(W)
100
SPL(dB)
91
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
85
Vas(l)
4.4
Qts
0.783
Qms
4.663
Qes
0.941
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
100
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
91
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
0
Mounting Depth (mm)
67
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6P
