Model

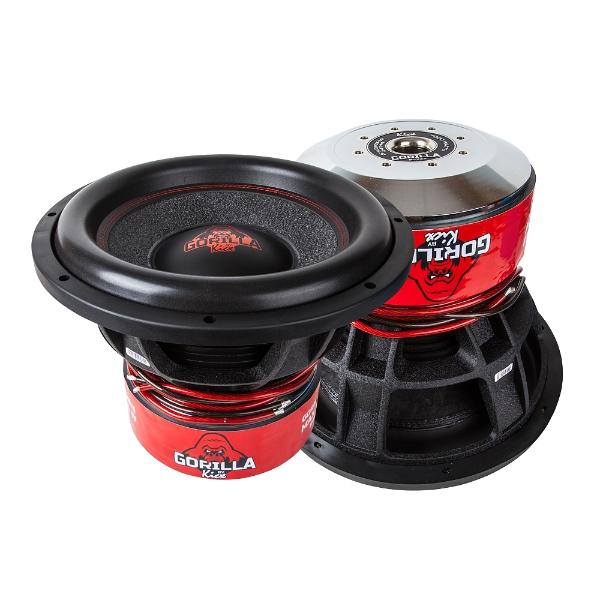

Kicx GORILLA BASS 15
Rating
DIAM
15"
FS(Hz)
42.1
VAS(l)
30.7
QTS
0.93
PWR(W)
7000
SPL(dB)
85
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42.1
Vas(l)
30.7
Qts
0.934
Qms
6.509
Qes
1.091
Bl(Tm)
21.5
Mms(gr)
396
Cms(mm/N)
0.036
Rms(kg/s)
16.071
Le(mH)
0
Re(Ohm)
4.8
Sd(sq.mm)
77900
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
7000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
87.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
282
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
