Model

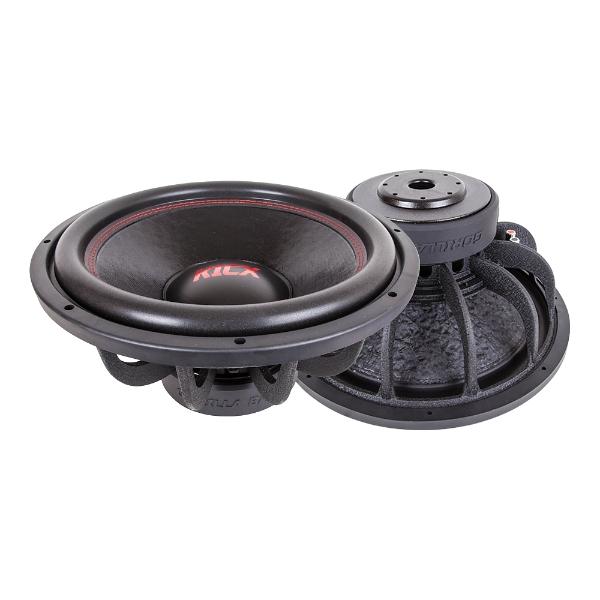

Kicx GORILLA BASS E15
Rating
DIAM
15"
FS(Hz)
31
VAS(l)
73.3
QTS
0.41
PWR(W)
2400
SPL(dB)
88.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
73.3
Qts
0.41
Qms
3.37
Qes
0.47
Bl(Tm)
24
Mms(gr)
342
Cms(mm/N)
0.08
Rms(kg/s)
19.79
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
80377
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.45
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
91.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
358
Mounting Depth (mm)
181
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
